Vortex Coresync S3

SYSTEM ENVELOPE: Solid-State Liquid-to-Silicon Thermal Node

FORM COMPLIANCE: Ultra-Low Profile Footprint // 1U Server Rack Compliant

DOCUMENT TARGET: Front-Page Fold // Quick Scan Core Product Overview

UNIVERSAL ARCHITECTURE MATRIX COMPLIANCE The Vortex Engine S3 discards traditional, vendor-specific footprints. The open solid-state core is mathematically standardized to deliver cross-platform socket integration—dropping effortlessly onto NVIDIA Blackwell, AMD EPYC, and Intel Xeon 6+ high-density silicon packages to maximize multi-chip cluster deployment scaling.

UNYIELDING STRUCTURAL INTEGRITY Machined from a monolithic block of raw, aerospace-grade titanium, the three-sided unibody exoskeleton acts as an unyielding structural shield. The metallurgical housing is rated to absorb severe physical vibration and withstand intense industrial system pressure spikes exceeding 60 PSI with absolute zero wall deflection or material fatigue.

HIGH-VELOCITY HYDROLOGIC EFFICIENCY By substituting restrictive mechanical micro-fins with pure fluidic logic manifolds, the S3 accelerates coolant ribbons into high-velocity counter-rotating micro-vortices. This cyclonic activity maintains an open volumetric flow throughput of 3.8 LPM while continuously scrubbing away the stagnant 120-micron boundary layer—stabilizing loop pressure drop at an ultra-low 0.8 PSI and slashing annual facility cooling costs by 79%.

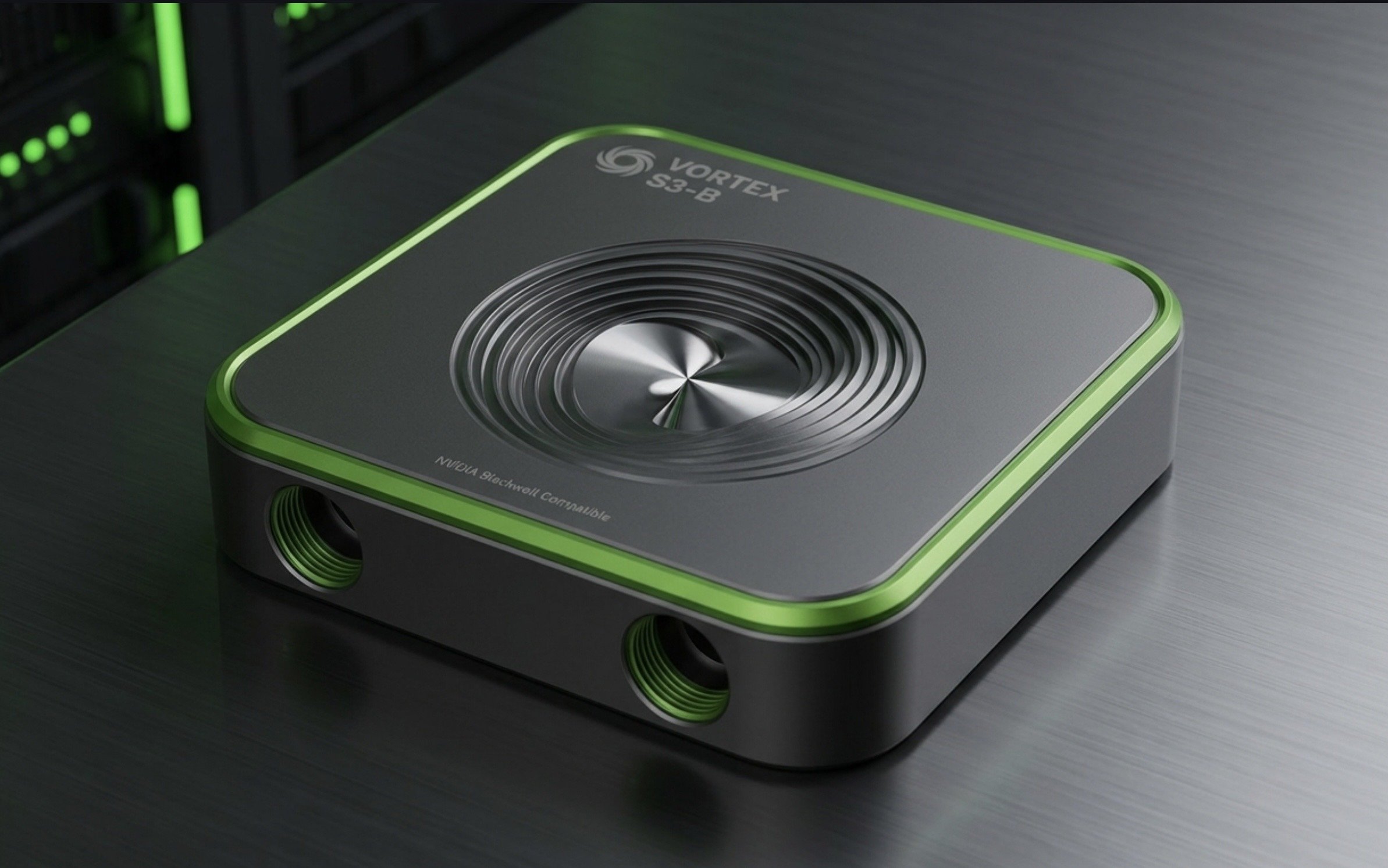

Vortex Coresync S3-B

SYSTEM ENVELOPE: High-Density Liquid-to-Silicon Thermal Interceptor

FORM COMPLIANCE: Ultra-Low Profile Footprint // 1U Server Rack Compliant

DOCUMENT TARGET: Front-Page Fold // Quick Scan Core Product Overview

Just like the S3, the S3-B leverages pure solid-state fluidic logic to generate high- velocity micro-vortices that continuously scrub away the stagnant 120-micron boundary layer—maintaining an open volumetric flow throughput of 3.8 LPM while slashing annual facility cooling costs by 79%

EXCLUSIVE PLATFORM COMPATIBILITY Unlike the universal configuration, the S3-B is an elite variant engineered exclusively to manage the hyper-dense thermal design power (TDP) thresholds and specific multi-die silicon geometry of NVIDIA Blackwell AI platforms and Tensor Core grid matrices.

LOWER INFRASTRUCTURE PROFILE The S3-B introduces a localized asymmetric right-to-left flow profile that drops the enclosure thickness down to an ultra-low profile footprint. This maximizes layout clearance within tightly packed, high-density server trays and demanding 1U server rack spaces.

GREATER SURGE PRESSURE RATINGS Due to its zero-resin exterior, the S3-B replaces the composite polymer wrapper with a 100% monolithic titanium block construction. This pure metallurgical housing provides a massive structural upgrade, rated to withstand intense, volatile industrial loop pressure spikes exceeding 90 PSI with absolute zero material deflection or seal compromise.

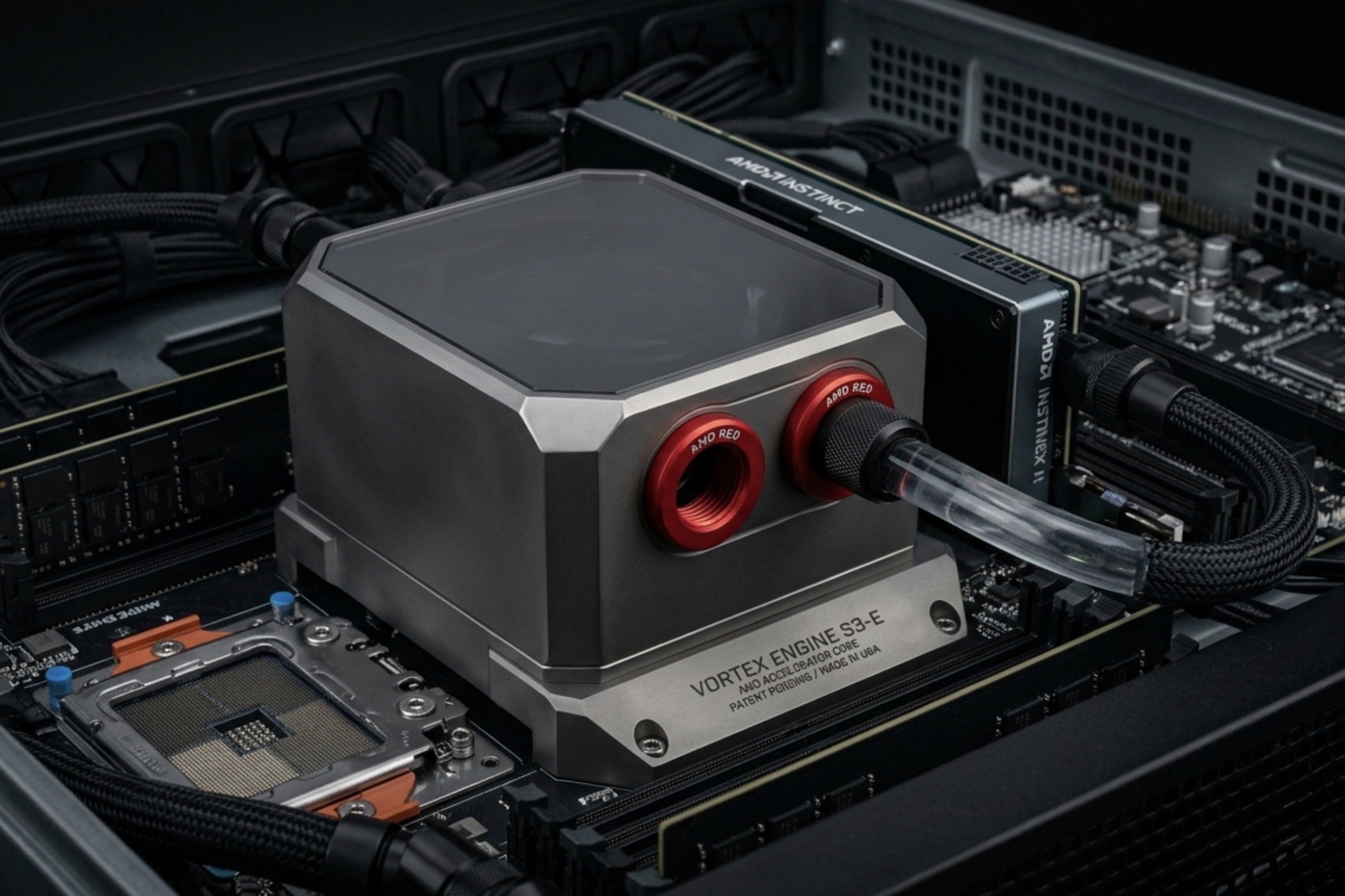

Vortex Coresync S3-E

SYSTEM ENVELOPE: High-Velocity Solid-State Thermal Management Core

FORM COMPLIANCE: Rigid Heavy-Block Enclosure Framework // 1U Server Rack Compliant

DOCUMENT TARGET: Front-Page Fold // Quick Scan Core Product Overview

Just like the S3, the S3-E leverages pure solid-state fluidic logic to generate high- velocity micro-vortices that continuously scrub away the stagnant 120-micron boundary layer—maintaining an open volumetric flow throughput of 3.8 LPM while slashing annual facility cooling costs by 79%.

EXCLUSIVE PLATFORM COMPATIBILITY Unlike the universal configuration, the S3-E is an elite hardware variant configured exclusively to manage the decentralized heat gradients and complex multi-CCD silicon geometry of AMD EPYC enterprise server architectures and multi-chiplet processing grids.

VERTICALLY STACKED DUAL-INDEPENDENT INLETS The S3-E introduces a specialized right-side face edge configuration featuring two precision vertically stacked G1/4" intake ports. The bottom inlet is supplied by a dedicated, sub-25°C baseline facility coolant line, while the top inlet receives a separate, isolated feed directly from adjacent high-capacity PCIe acceleration accelerators.

SHIELDED PERIMETER DUMP INTERACTION To achieve maximum cooling efficiency, the hot fluid from the accelerator is routed through an independent, shielded channel tracking strictly along the upper perimeter boundary of the block casing. This design dumps the auxiliary thermal load directly into the wide evacuation mouth right above the main out-port—utilizing high-speed fluidic suction to rapidly drag heated liquid out of the block, eliminating internal thermal feedback, and driving loop resistance well below our standard 0.8 PSI baseline.

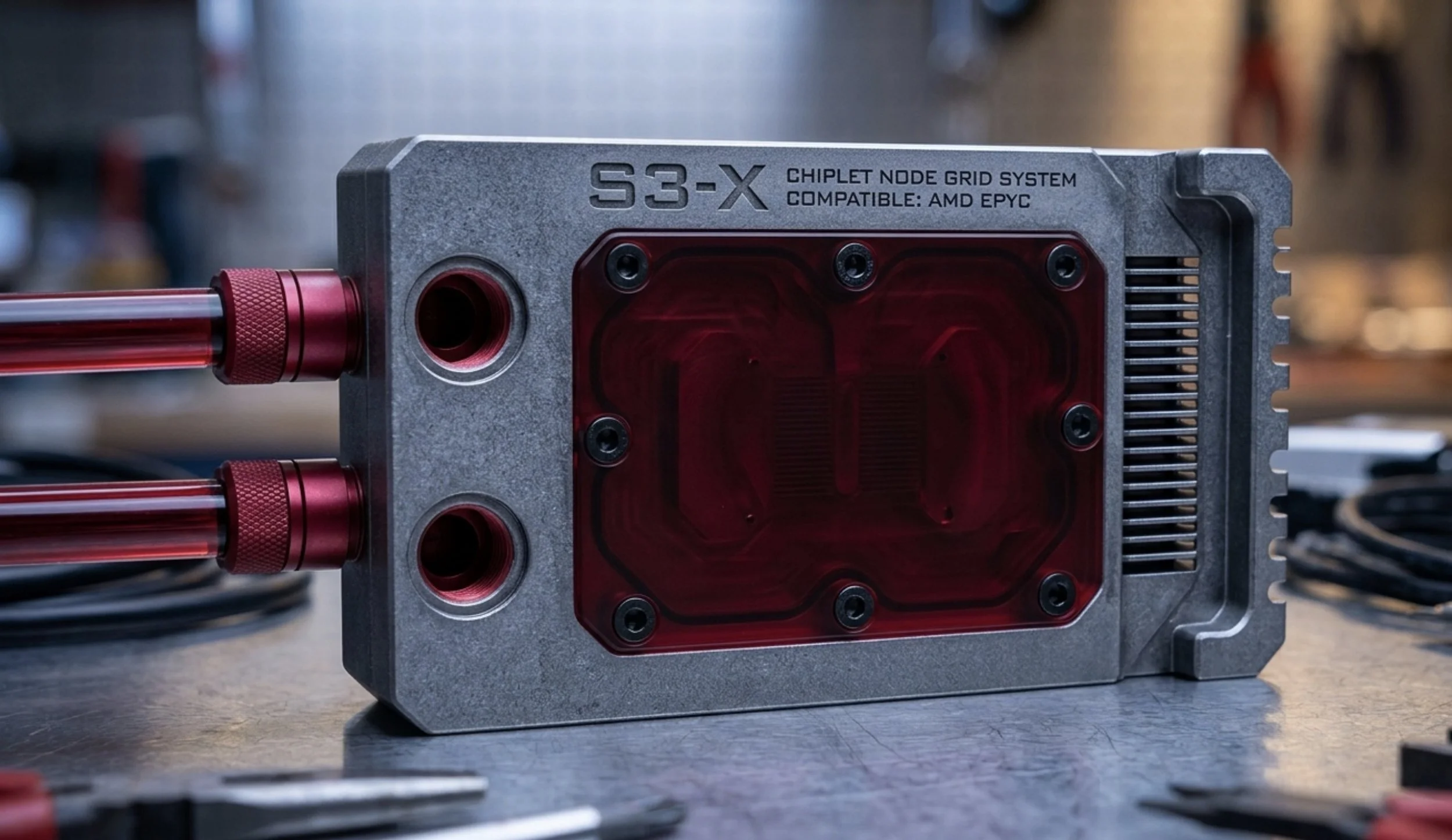

Vortex Coresync S3-X

SYSTEM ENVELOPE: High-Velocity Solid-State Thermal Management Node

FORM COMPLIANCE: Monolithic Ultra-Low Profile Slab // U1 Server Rack Compliant

DOCUMENT TARGET: Front-Page Fold // Quick Scan Core Product Overview

The Vortex Coresync S3-X is a solid-state thermal node engineered from the ground up for exclusive architectural synchronization with next-generation high-density infrastructure. Built to eliminate thermal boundaries during maximum compute cycles, the platform allows enterprise environments to scale processing power seamlessly while reducing annual facility cooling overhead by 79%.

EXCLUSIVELY PLATFORM COMPATIBILITY Unlike standard, multi-purpose cooling configurations, the S3-X is a highly specialized monolithic slab designed exclusively to match the specific physical geometries and advanced socket footprints of the Intel® Xeon® 6 and Xeon® 6+ processor series. Every dimension of the node directly corresponds to Intel's latest enterprise silicon layout, ensuring 100% precision fitment.

MAXIMUM TDP THERMAL BOUNDARY ALIGNMENT The S3-X is mathematically and structurally optimized to balance the extreme Thermal Design Power (TDP) thresholds unique to the Xeon 6+ architecture. By providing uniform, low-resistance thermal contact across the entire multi-core surface, it prevents localized hotspot formation and completely eliminates performance throttling during heavy LLM training and dense AI workloads.

1U BLADE INTEGRATION & CHIPSET COMPLIANCE Featuring an ultra-low profile design, the S3-X integrates seamlessly into standard 1U server blade configurations running Xeon 6+ hardware. The architecture respects the strict height and clearance constraints of modern multi-tenant server racks, allowing data center operators to maximize vertical compute density without requiring custom chassis or structural modifications.
